PROBLEM STATEMENT

2.PROBLEM STATEMENT.png

RESEARCH


TARGET USER

4.TARGET USER.png

BENCH MARKING


IDEATIONS

MOODBOARD

MECHANICS RESEARCH

FURTHER IDEATION

10.IDEATION PHASE 3.png

ITERATION - PROTOTYPING

In this second iteration attend the design is composed of more essential elements to keep a structure integrate as well as an ergonomic one.

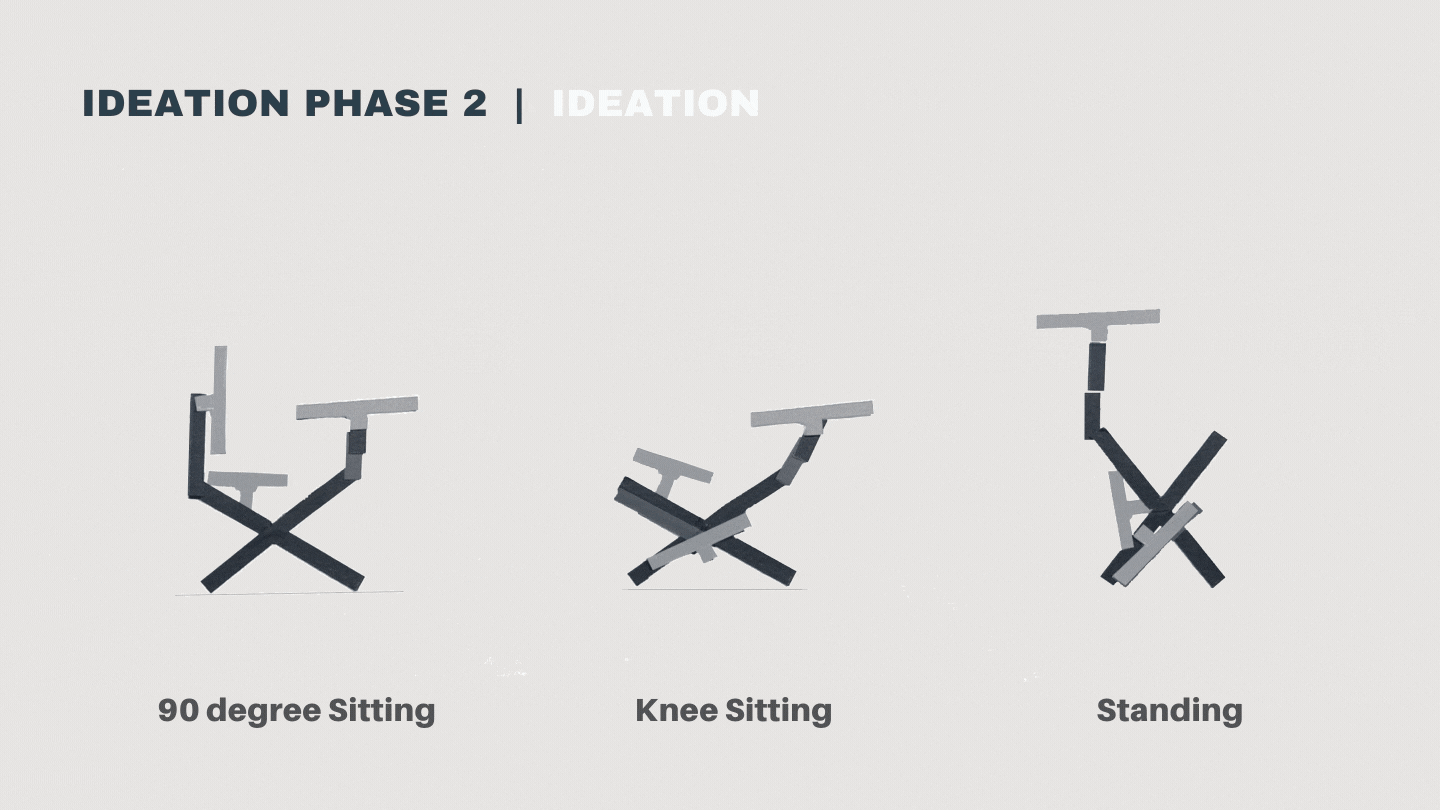

First iteration phase using a low res prototype to explore the three desirable position use of the workstation.



USER CONTEXT

13.USER CONTEXT.png

FINAL PRODUCT DESIGN

15. TRIPLE DESCRIPTION.png

FINAL USER CONTEXT

16.TRIPLE USER CONTEXT.png

DESK EXPLODING VIEW ANIMATION

This exploded view shows all the parts that compose the desk and arm support.



DESK ADJUSTABLE ANGLES

DESK ADJUSTABLE ANGLES ANIMATION

This exploded view shows all the parts that compose the desk and arm support.



SEAT EXPLODED VIEW ANIMATION

In this exploded view shows the parts of the seat. Its design and mechanics.



SEAT ADJUSTABLE ANGLES

SEAT ADJUSTABLE ANGLES ANIMATION

This video shows the seating different angles to what it can be adjusted to.

KNEE PAD EXPLODED VIEW

An exploded view of the knee pad components. With a bearing that allows 360 degree movement and locks in to place in certain angles.



KNEE PAD ADJUSTABLE ANGLES

24.KNEE PAD ADJUSTABLE ANGLES.png

KNEE PAD ANGLES ANIMATION

The three knee pad locked positions.
